Product Discription
- Quality tablet production at high speed.
- Design confirming to GMP norms.
- Exquisitely engineered body kept in a cabinet.
- Simple and convenient operation, offering operator Protection, cleanliness and ease of maintenance.
- All the tablet parameters can be fine tuned during the operation of the machine from outside the tableting zone.
Salient Features :
- High Speed tablet press with outstanding engineering, performance and reliability.
- Front and easy outside controls.
- AC invertor variable drive for main and feeder motor.
- Separate control panel – safe against electric short Circuit during steam wash.
- Auto lubrication with fine tuning valve and timer.
- Extremely robust quality engineering, house in an easily accessible cabinet.
- Simple and convenient operation, operator protection, cleanliness and ease of maintenance.
- All the tablet parameters can be fine tuned during the operation of the machine from out side the tableting zone

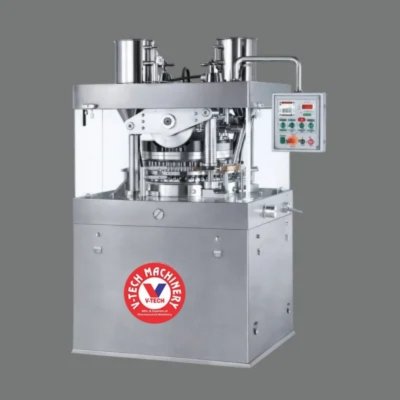

TECHNICAL SPECIFICATIONS:-Rotary Tablet Press – B4 Type Double Rotary Tablet Making Machine
| TECHNICAL SPECIFICATIONS | ||||
| Type |
VPD-37 | VPBII-45 | VPBBII-55 | VPBBII-61 |
| No. of stations |
37
|
45 | 55 | 61 |
| Type of tooling | D | B | BB | BB |
| Max. Operating Pressure | 10 Ton | 6.5 Ton | 6.5 Ton | 6.5 Ton |
| Max. Tablet Dia. | 23 mm (25.4 mm on demand) | 16 mm | 11 mm | 11 mm |
| Depth of Fill | 20.5 mm | 17.5 mm | 17.5 mm | 17.5 mm |
| Output Tablets / Hr.* |
87000 to 222000
|
96000 to 32400
|
120000 to 396000
|
132000 to 438000
|
| Upper Punch Penetration | 3.2 to 8 mm | |||
| Main Electric Motor | 7.5 kW / 10 Hp / 1440 RPM / 3 Ph | |||
| Powder Feeder Motor | 0.19 kW / 0.25 Hp / 1440 RPM / 3 Ph | |||
| *Depending upon the characteristic of material and shape & size of tablets.NOTE: Due to continious improvements in the machineres, specification of the machineries is subject to change without any prior notice. |
||||
