technical specification

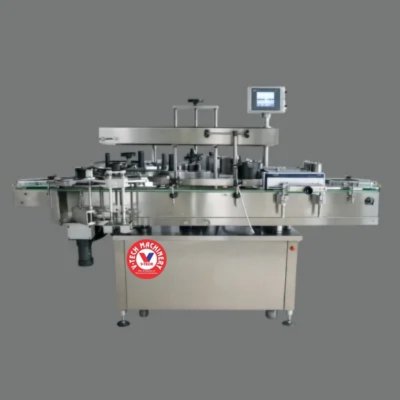

The Sticker Labelling Machines Manufacturers In India is designed to handle round products with bottle sizes ranging from 15 mm to 90 mm in diameter, delivering an output speed of 120 to 150 products per minute depending on label and product size. It accommodates label dimensions from a minimum of 15 mm (height) by 35 mm (length) to a maximum of 90 mm by 150 mm, with an adjustable working height of 850 mm ± 50 mm. The machine operates on a single-phase power supply with neutral and earthing at 230 V AC, 50 Hz, consuming approximately 2.5 KVA of power. It requires an air supply of 4 to 6 kg/cm² when used with a contact-type batch printer. With an approximate net weight of 350 kg and overall dimensions of 1525 mm (length) × 950 mm (width) × 1800 mm (height), the VM-SLM offers a compact yet efficient solution for high-speed labeling applications.
In addition to its robust performance, the VM-SLM is engineered for ease of operation and consistent labeling accuracy, making it suitable for a wide range of industries such as pharmaceuticals, food and beverage, and cosmetics. Its adaptable design allows quick adjustments for different bottle sizes and label dimensions, minimizing downtime during product changeovers. The machine’s sturdy construction ensures durability and stable operation even at high speeds, while its precise labeling mechanism helps reduce material wastage and maintain a professional finish. Overall, the VM-SLM provides a reliable, efficient, and user-friendly solution for businesses seeking to enhance productivity and streamline their packaging processes.
| Model | VM-SLM |
| Bottle size (Ø) | 15mm Ø to 90mm Ø |
| Bottle Range | Round Products |
| Output speed | 120 to 150 Products/Minute (Speed depends on label and products size) |
| Label size | Min: 15 mm (H) x 35 mm (L) Max: 90mm (H) x 150 mm (L) |
| Working Height | 850 mm ± 50 mm Adjustable |
| Power Consumption | 2.5 KVA |
| Power Supply | SinglePhase + Neutral + Earthing/ 230 V AC/ 50Hz |
| Air Supply | 4 to 6 kg/cm² (If use Contact type Batch Printer) |
| Net Weight | 350 Kg Approx. |
| Dimensions | 1525 mm (L)x 950 mm (W)x 1800mm(H) Approx. |
