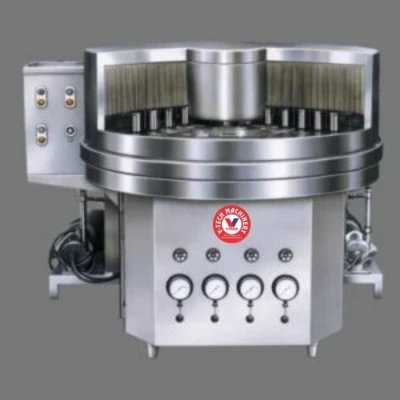

Bottle Washing Machines Manufacturers And Suppliers In India

Price:

Geneva Mechanism.
Four inner (Included one air wash) & one outer.
Sequence of washes to customer’s choice.
Easy operation.
Stationary nozzles eliminate contamination of water cycles.
Easy loading and unloading.
Individual solenoid valve for each washing sequence that eliminates carbon plate and other accessories reduces leakage and maintenance to minimum.
Higher capacity centrifugal pumps to wash bigger bottles (500 & 1000 ml.).
The stationary nozzles avoid chipping of bottle necks.
Pumps and tanks are mounted on portable stand for easy maintenance.
Bottle guide system especially for lightweight bottle.
Pumps and Tanks are mounted on portable stand for easy maintenance.
Separate panel control to avoid any short circuit due to spraying of water.
S.S. glycerin fill pressure meter.

Model		VM-BWM – 64	VM-BWM – 96
Output / Hour		2600 to 6000 Nos.	4300 to 9000 Nos.
No. of Container Holder		64	94
Direction of Movement		Clock wise
Electrical Specification	Main Motor	0.5 HP / 415 Volts / 50 Hz.
	Pump Two Nos.	1HP X 2 = 2 HP / 415 Volts / 50 HZ
	Electric Heater	3 Kw.
Tank Capacity		75 Ltrs. S.S. 304 (2 Nos.)
Wash Cycle		4 inner + 1 Outer
Working heights		860 to 910 mm
Machine Dimensions (In mm)		1500 (L) x 1750 (W) x 1300 (H)	1500 (L) X 1750 (W) x 1300(H)
Case Dimensions (In mm) Two Cases	Machine	1600 (L) x 1600 (W) x 1550 (H)	1600 (L) x 1600 (W) x 1550 (H)
	Tanks	1550 (L) x 1000 (W) x 1550 (H)	1550 (L) x 1000 (W) x 1550 (H)
Net Weight		450 Kgs.	550 Kgs.
Gross Weight		750 Kgs.	900 Kgs.
Change parts required		(A) Neck Dia: Bottle holding pocket. (B) Flat Container: Special type of cup.
